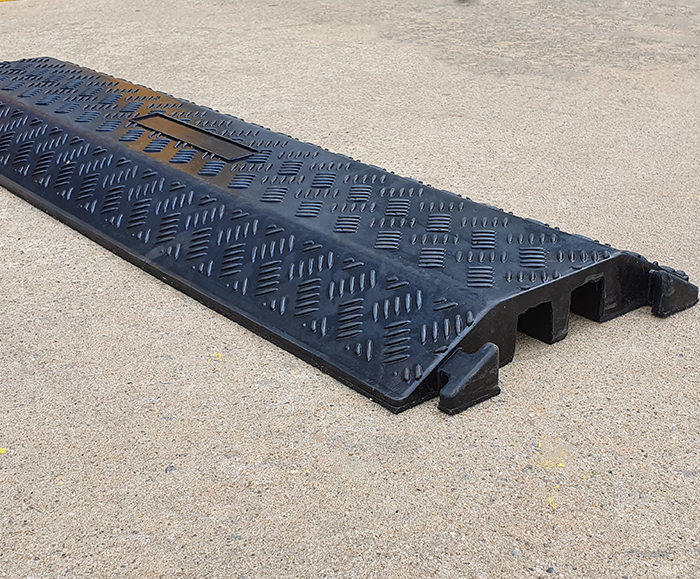

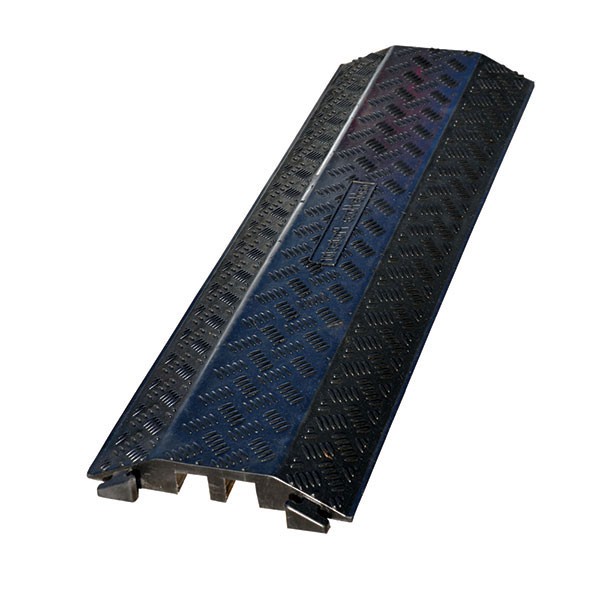

CPDROP2 Dropover Cable Cover
- Two channel drop-over cable protector with interlocking feature.
- Designed to comfortably protect 4-5 cables
- Comes in 1 meter inter-locking lengths
- These cable covers are ideal for warehouse, office and pedestrian applications
- Simply dropover top of cables
- Anti-slip checker tread plate surface
A robust drop-over style cable protector, manufactured from non-conductive rubber with anti-slip tread. The protector is primarily designed for pedestrian use, but will cater for occasional light vehicle traffic.
We stock a wide range of cable covers for various applications, to ensure you are getting the right product for your needs why not call us on 1300 76 44 77
|
SKU |
Description |
| CPDROP02 | 2 Channel dropover cable cover |

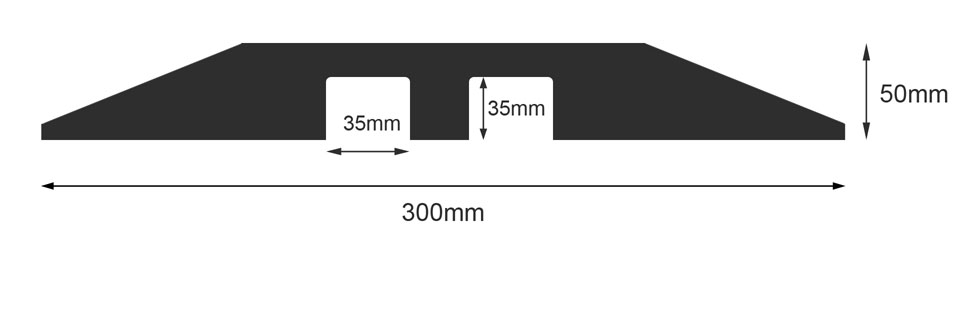

| Width | Height | Length | Channel Size | Cable Capacity | Availability For Fixings? | |
|---|---|---|---|---|---|---|
| CPDROP02 | 300mm | 50mm | 1000mm Interlocking Lengths | 2 - 35mmH x 35mmW | 5 | No |
| CPDROP03 | 300mm | 50mm | 1000mm Interlocking Lengths | 3 - 35mmW x 35mmH | 7 | No |
| 2CHCP | 250mm | 45mm | 1000mm Interlocking Lengths | 2 - 30mmH x 30mmW | 7 | Yes |
| 3CHCP | 600mm | 75mm | 900mm Interlocking Lengths | 3 - 50mmH x 55mmW | 10 | Yes |
| 5CHCP | 600mm | 75mm | 900mm Interlocking Lengths | 5 - 50mmH x 40mmW | 15 | Yes |
| CP5CH | 500mm | 50mm | 900mm Lengths with dog-bone connectors | 5 - 35mmH x 32mmW | 15 | No |
- CPDROP02
- CPDROP03
- 2CHCP
- 3CHCP
- 5CHCP
- CP5CH
- Width
- 300mm
- 300mm
- 250mm
- 600mm
- 600mm
- 500mm
- Height
- 50mm
- 50mm
- 45mm
- 75mm
- 75mm
- 50mm
- Length
- 1000mm Interlocking Lengths
- 1000mm Interlocking Lengths
- 1000mm Interlocking Lengths
- 900mm Interlocking Lengths
- 900mm Interlocking Lengths
- 900mm Lengths with dog-bone connectors
- Channel Size
- 2 - 35mmH x 35mmW
- 3 - 35mmW x 35mmH
- 2 - 30mmH x 30mmW
- 3 - 50mmH x 55mmW
- 5 - 50mmH x 40mmW
- 5 - 35mmH x 32mmW
- Cable Capacity
- 5
- 7
- 7
- 10
- 15
- 15
- Availability For Fixings?
- No
- No
- Yes
- Yes
- Yes
- No
